TZ HERRAMIENTAS
HAY 4 TIPOS
1-PLACA RADIO 2.5 ROSCADA
2-PLACA RADIO 3.5 ROSCADO
3-PLACA RADIO 5.0 CILÍNDRICA
4-PLACA RADIO 5.0 ROSCADA
1-PLACA RADIO 2.5 ROSCADO
REFERENCIA 520971

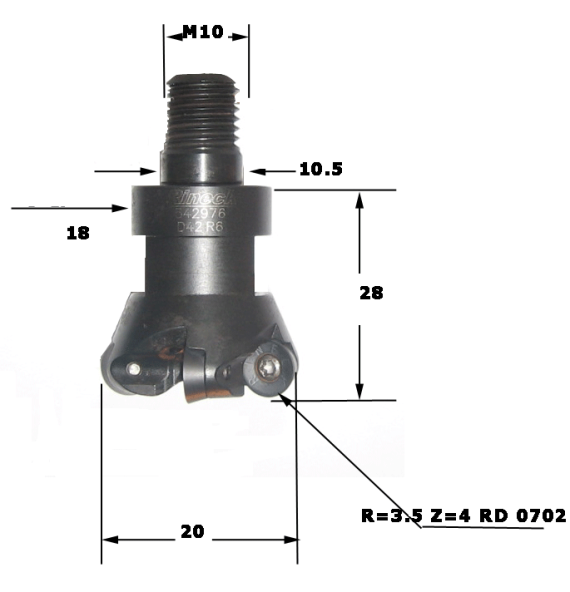

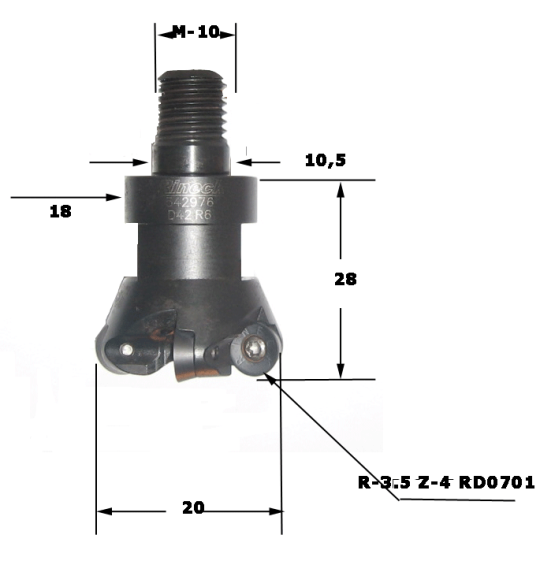

2-PLACA RADIO 3.5 ROSCADA (2 MODELOS)
REF:420967
REF:420851

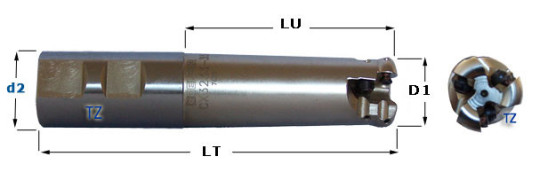

3-PLACA RADIO 5.0 CILÍNDRICA
| d1 | D2 | LT | LU | PLACA | Z | TORNILLO | REFERENCIA |
| 20 | 20 | 90 | 40 | RD1003 | 2 | 99304 | 220933 |
| 20 | 20 | 110 | 60 | RD1003 | 2 | 99304 | 220932 |
| 20 | 25 | 136 | 80 | RD1003 | 2 | 99304 | 220931 |
| 20 | 25 | 156 | 100 | RD1003 | 2 | 93304 | 220930 |
| 20 | 25 | 176 | 120 | RD1003 | 2 | 99304 | 220929 |
4-PLACA RADIO 5.0 ROSCADA
REF:220987
